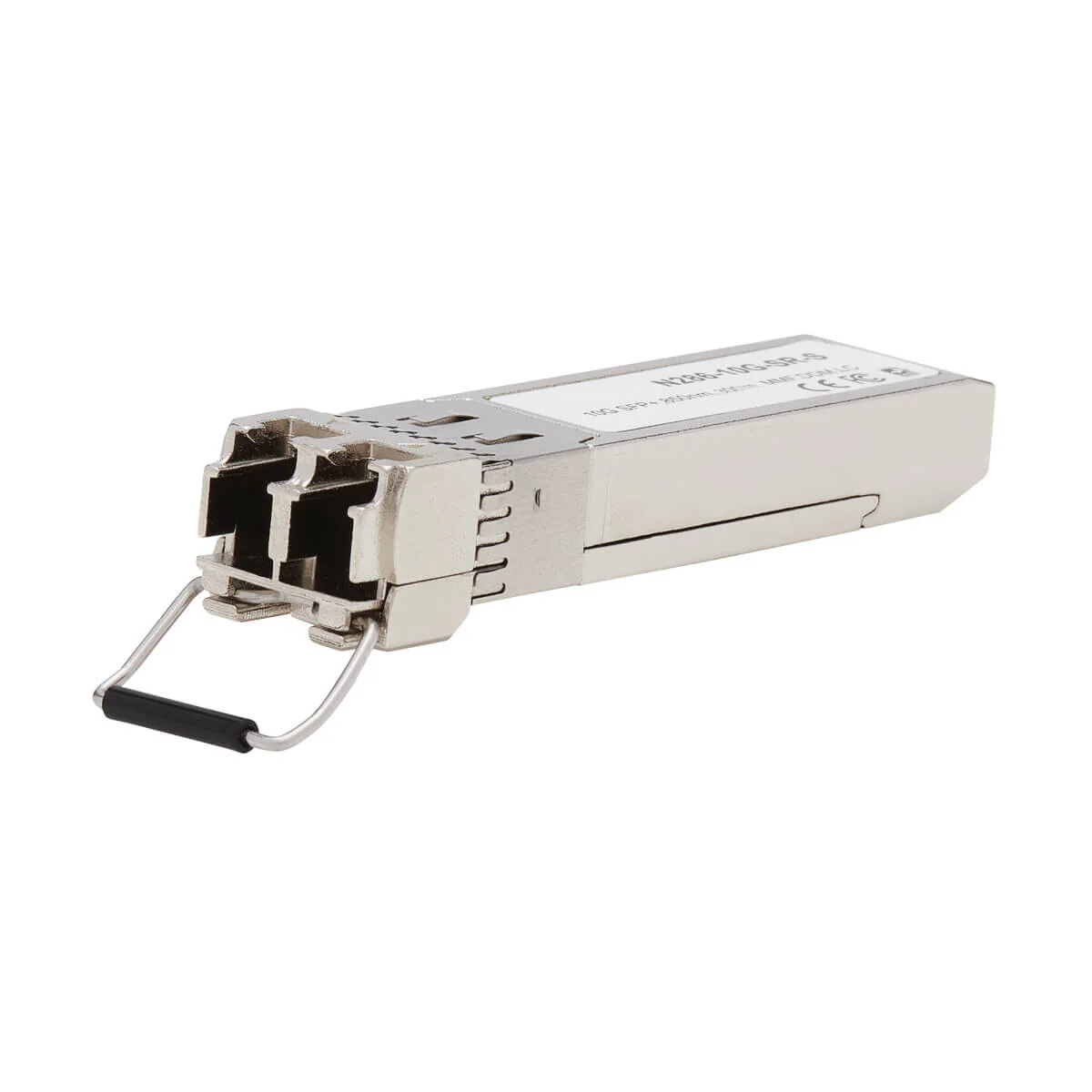

Tripp Lite N286-10G-SR-S Cisco-Compatible SFP-10G-SR-S SFP+ Transceiver - 10GBase-SR, DDM, Multimode LC, 850 nm, 300M (984.25 ft.)
- SFP+ transceiver module 100% compatible with Cisco’s equivalent module
- Provides 10 Gbps throughput up to 300 m (984 ft.) via multimode fiber cabling
- LC duplex female connector supports 10GBase-SR signal at 850 nm wavelength
- Hot-swappable interface lets you install and uninstall without shutting down
- Supports DDM for monitoring temperature and other real-time operating parameters
SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
This SFP+ transceiver allows you to connect a 50/125 multimode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 300 meters (984 feet) and supports bi-directional Gigabit Ethernet communication up to 11.1 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Cisco SFP-10G-SR-S Transceiver Module
The MSA-compliant N286-10G-SR-S functions just like the equivalent Cisco SFP-10G-SR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the SFP-10G-SR-S.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of various operating statuses in real time, including transceiver temperature, input and output power, and supply voltage.
S-Class Transceiver Highly Recommended for Enterprise Network
This S-Class fiber transceiver module is ideal for enterprise network runs of shorter distances than other standard modules. The S-Class N286-10G-SR-S supports only Ethernet protocol and operates only within commercial temperature ranges (0 to 70°C).
| Performance | |
|---|---|
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength | 850 nm |
| Maximum transfer distance | 300 m |
| SFP transceiver standard | SR |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Fiber optic connector | LC |
| Multi-mode fiber (MMF) supported | Yes |
| Single-mode fiber (SMF) supported | No |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Brand compatibility | Cisco |
| Hot-Plug support | Yes |
| Product colour | Silver |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 85% |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -5 - 85 °C |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -5 °C |
| Weight & dimensions | |
|---|---|
| Weight | 30 g |
| Packaging data | |
|---|---|
| Package weight | 30 g |
| Package height | 21.6 mm |
| Package depth | 29.7 mm |
| Package width | 114 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 430 g |
| Master (outer) case height | 74.9 mm |
| Master (outer) case length | 130 mm |
| Harmonized System (HS) code | 8517.62.0090 |
| Master (outer) case width | 230.1 mm |
| Master (outer) case GTIN (EAN/UPC) | 10037332249262 |
