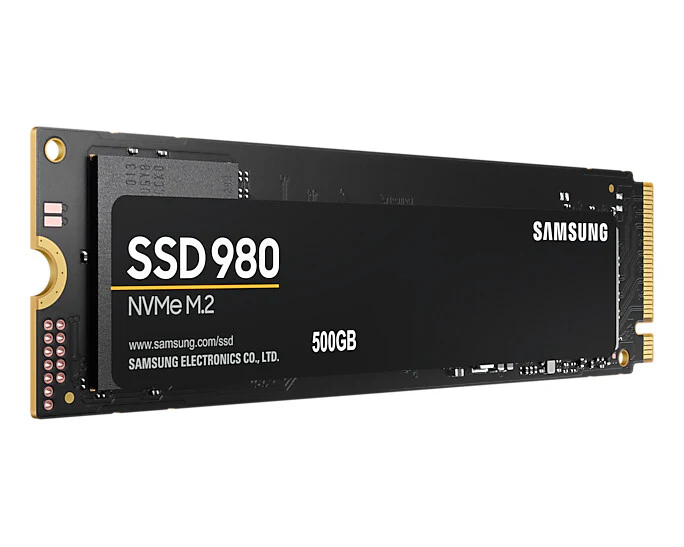

Samsung 980 500 GB M.2 PCI Express 3.0 NVMe V-NAND MLC
- Samsung NVMe SSD powered by V-NAND technology
- Up to 3,500 MB/s sequential read and 3,000 MB/s write
Upgrade to breathtaking NVMe™ speed
It's time to maximise your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance and it's all backed by an NVMe™ interface and PCIe 3.0 technology.
Packed with speed
Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s[1] , over 6.2x the speed of SATA SSDs.
Keep moving with Full Power Mode
Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Instantly jump right back to intensive work with huge files, graphics-heavy games or even normal PC usage.
Built for the long run
Keep your files safe with an SSD that's in it for the long haul. With up to 600 TBW and a 5-year limited warranty, the 980's optimised endurance comes with proven reliability thanks to Samsung's in-house solutions, from the state-of-the-art controller to V-NAND and the latest firmware.
Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 manages heat on its own to deliver durable and reliable performance. To minimise performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980's temperature at optimal levels.
Samsung Magician software
Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.
World's No. 1 Flash Memory
Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1500000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| DevSlp (device sleep) support | Yes |
| PCI Express interface data lanes | x4 |
| Controller type | Samsung Pablo |
| Random write (4KB) | 470000 IOPS |
| Random read (4KB) | 400000 IOPS |
| Write speed | 2600 MB/s |
| Read speed | 3100 MB/s |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC |
| Memory type | V-NAND MLC |
| NVMe version | 1.4 |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| SSD capacity | 500 GB |
| Power | |
|---|---|
| Power consumption (idle) | 0.045 W |
| Power consumption (average) | 4.3 W |
| Power consumption (max) | 5.9 W |
| Operating voltage | 3.3 V |
| Weight & dimensions | |
|---|---|
| Weight | 8 g |
| Height | 22.1 mm |
| Depth | 22.1 mm |
| Width | 80.2 mm |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Operating temperature (T-T) | 0 - 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
