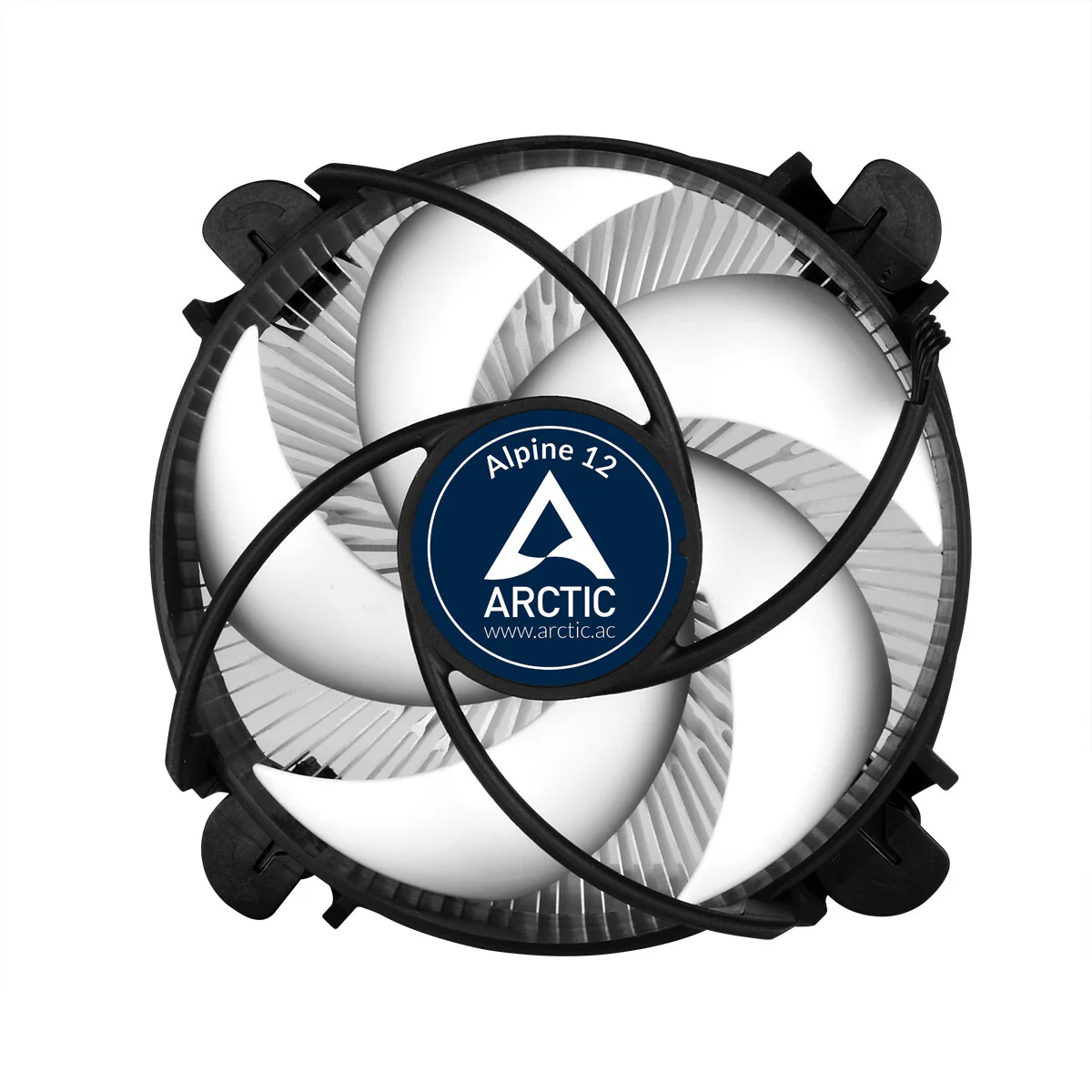

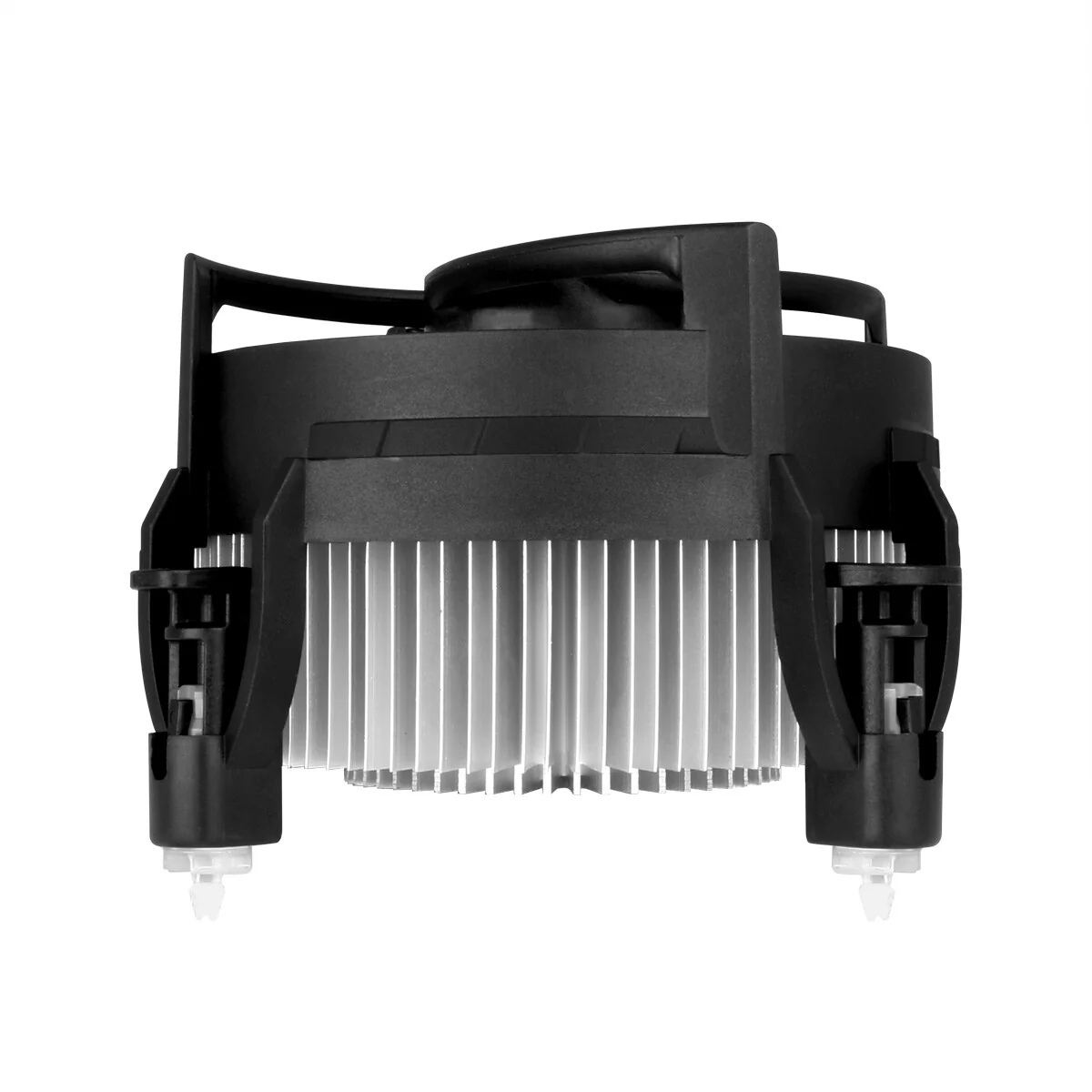

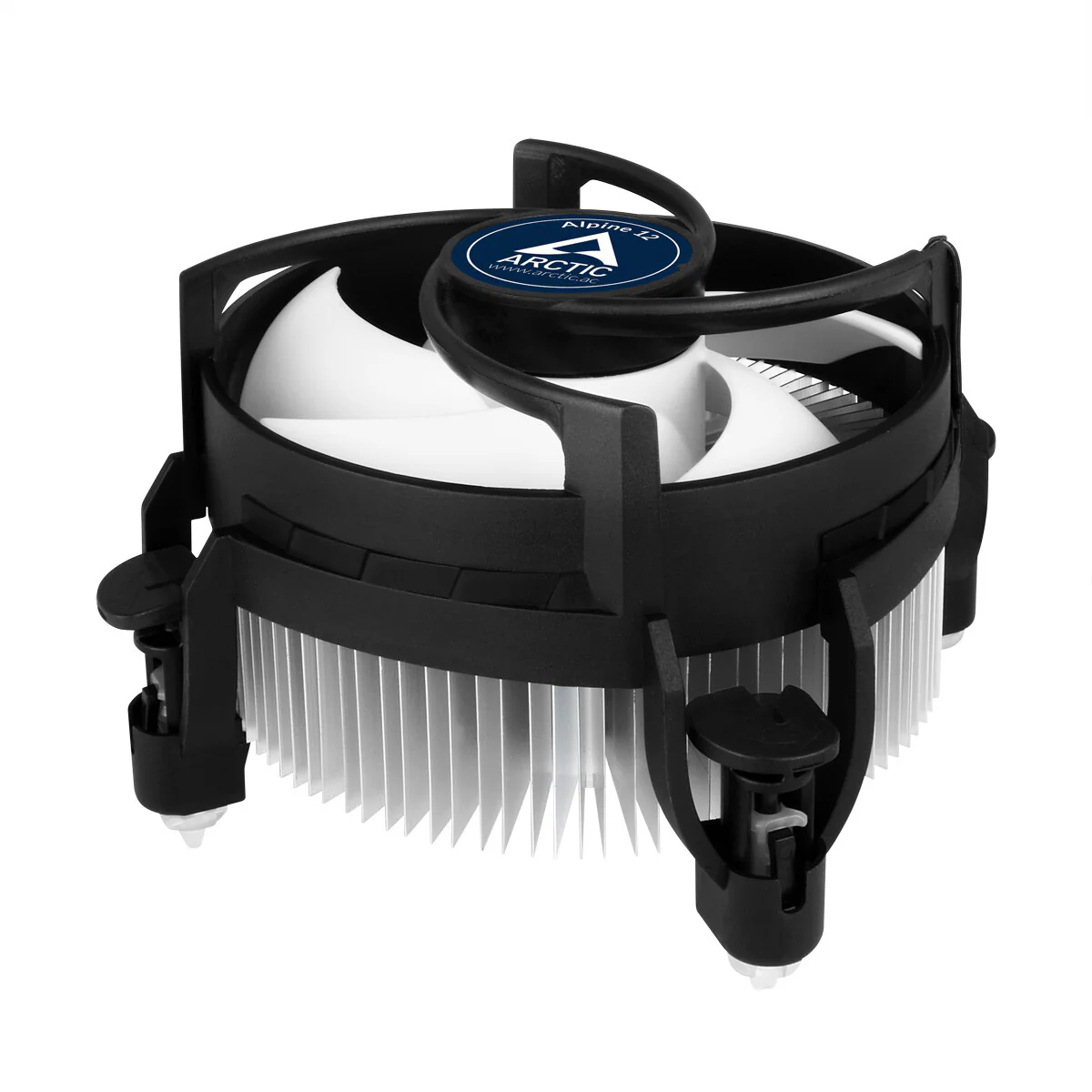

ARCTIC Alpine 12 – Compact Intel CPU Cooler
- Improved cooling performance by new production process
- 0 dB mode: silent passive mode when PWM is below 5 %
- Lower power consumption and less vibrations with new motor technology
- Extended life span thanks to low coil temperature
- Pre-applied MX-2 thermal paste
- Easy and tool-free installation
Improved Cooling Performance
by New Production Process

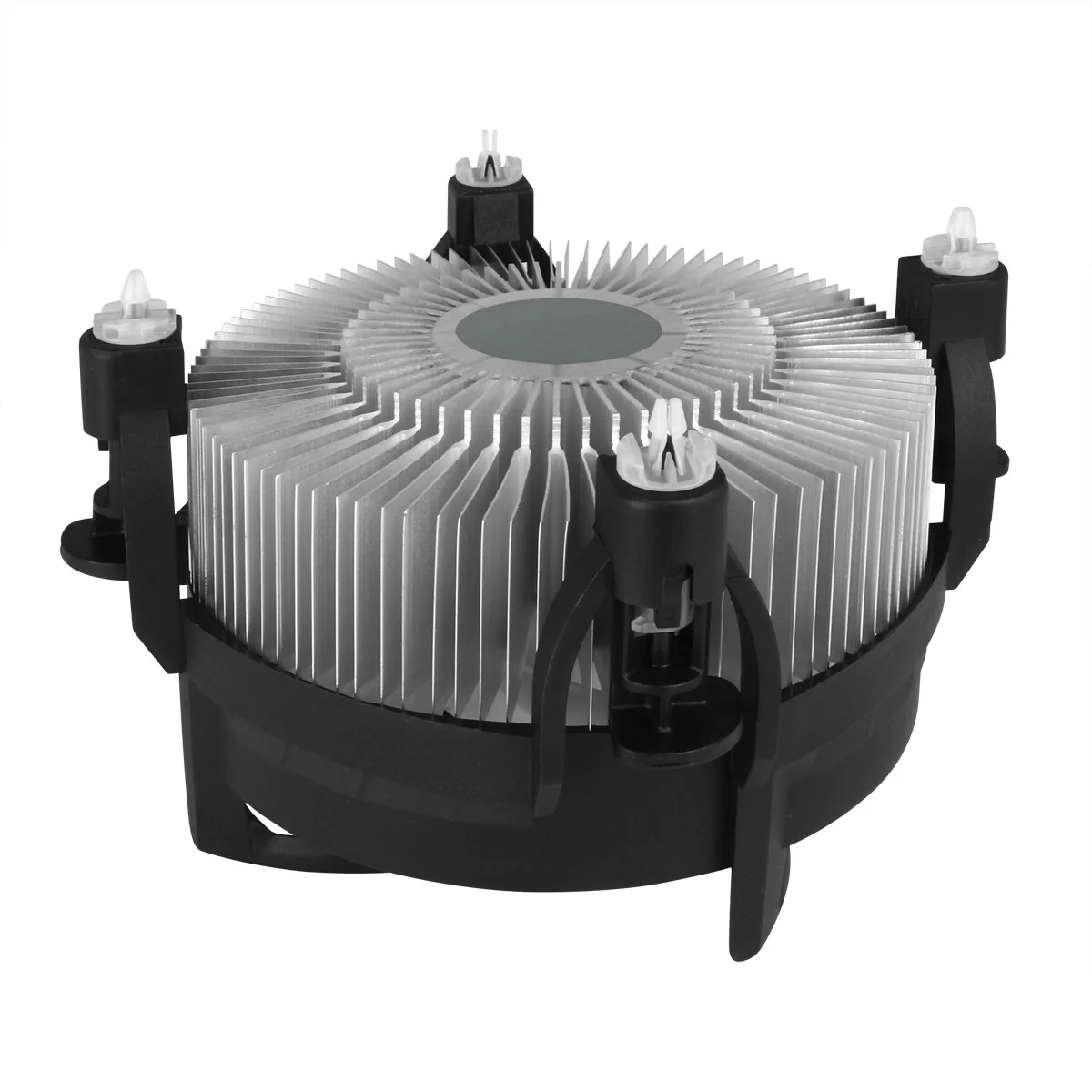

The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
Lower Power Consumption & Minimum Vibration
The new Alpine 12 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibrations from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Pre-applied MX-2 Thermal Paste
The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.
Easy and Tool-free Installation
Thanks to the push pins, the installation is really easy. Additional tools are not needed to install the cooler.
| Performance | |
|---|---|
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Noise level | 0.3 sone |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 100 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H) |
| Fan diameter | 9.2 cm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Material | Aluminium |
| Product colour | Black, Silver |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 95 W |
| Rated current | 0.06 A |
| Voltage | 12 V |
| Power supply | 0.72 W |
| Weight & dimensions | |
|---|---|
| Package weight | 320 g |
| Package height | 96 mm |
| Package depth | 78 mm |
| Package width | 96 mm |
| Weight | 270 g |
| Height | 77 mm |
| Depth | 95 mm |
| Width | 95 mm |
| Packaging content | |
|---|---|
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
